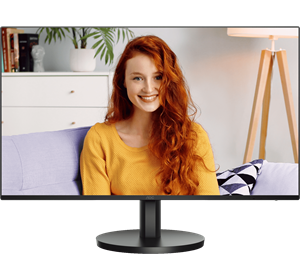

AOC Basic-line B3 Series 24B3HA2 24-inch LED Monitor Full HD
Search our help content
For an optimised experience at this window size, please refresh your browser.
Top Specifications
Top Specifications
Screen size
23.8-inch
Refresh rate
100Hz
Screen resolution
HDMI: 1920x1080 at 100Hz
VGA: 1920x1080 at 60Hz
VGA: 1920x1080 at 60Hz
Environmental
Environmental
Operational temperature
Operating: 0°C to 40°C
Non-operating: -25°C to 55°C
Altitude -
Operating: 0m to 5000m (0 to 16404ft)
Non-operating: 0m to 12192m (0 to 40000ft)
Non-operating: -25°C to 55°C
Altitude -
Operating: 0m to 5000m (0 to 16404ft)
Non-operating: 0m to 12192m (0 to 40000ft)
Operational humidity
Operating: 10% to 85% (non-condensing)
Non-operating: 5% to 93% (non-condensing)
Non-operating: 5% to 93% (non-condensing)
Design
Design
Bezel Type
3-Sided Frameless
Body
Body
Weight (kg)
With stand: 2.97
Without stand: 2.65
Without stand: 2.65
Dimensions (mm)
With stand: 542.4x412.1x202.3 (WxHxD)
Without stand: 542.4x316.2x44.6 (WxHxD)
Without stand: 542.4x316.2x44.6 (WxHxD)
Tilt range
-5° - 23°
Panel
Panel
Anti glare
Connectivity
Connectivity
Frequency band
Horizontal Scan Range: 30k - 115kHz
Vertical Scan Range: 48 - 100Hz
Vertical Scan Range: 48 - 100Hz
Display
Display
Display features
Flicker-free
Low Blue Mode
Low Blue Mode
HD Ready / Full HD / Ultra HD
Full HD
Screen size
23.8-inch
Panel type
LCD
Brightness
250 nits
Viewing angle
178 degrees
Response time
GtG: 4ms
MPRT: 1ms
MPRT: 1ms
Pixel pitch (mm)
0.2745×0.2745 (HxV)
Pixels per "
93
Screen resolution
HDMI: 1920x1080 at 100Hz
VGA: 1920x1080 at 60Hz
VGA: 1920x1080 at 60Hz
Aspect ratio
16:9
Refresh rate
100Hz
Features
Features
Size
Horizontal scan size (Max): 527.04mm
Vertical scan size (Max): 296.46mm
Vertical scan size (Max): 296.46mm
Feature
AdaptiveSync
Warranty
Warranty
Device warranty
24 months
Power
Power
Power supply
100 - 240V 50/60Hz
Power consumption
Typical: 20W
Standby mode: 0.5W
Max: 32W
Standby mode: 0.5W
Max: 32W
Accessory
Accessory
Built-in Devices
Built-in Devices
Built-in speakers
Yes - 2x 2W
Interfaces/Ports
Interfaces/Ports
HDMI port
Yes - 1
Display port
3.5mm audio output
VGA
Yes - 1
Energy Performance
Energy Performance
Certification
Certification
Environmental compliance
RoHs
Certification and Compliance
Certification and Compliance
Safety
CE
FCC
FCC
