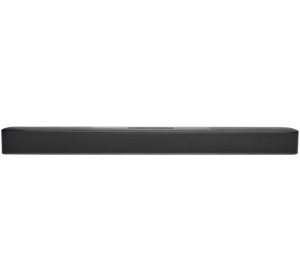

JBL Bar 5 MultiBeam
Search our help content
Popular topics
For an optimised experience at this window size, please refresh your browser.
For an optimised experience at this window size, please refresh your browser.
Bluetooth
Bluetooth
Frequency transmission range
2400MHz-2483.5MHz
Audio
Audio
Frequency response
50Hz-20KHz
Body
Body
Dimensions (mm)
709x58x101 (WxHxD)
Weight (kg)
2.8
Connectivity
Connectivity
Warranty
Warranty
Device warranty
24 months
Compatibility
Compatibility
Compatibility
Chromecast
Apple AirPlay 2
Alexa Multi-Room Music
Apple AirPlay 2
Alexa Multi-Room Music
Power
Power
Power supply
AC 100-240V 50/60Hz
Speaker output
250W
Sound
Sound
Sound output
5x 50W
Dolby Atmos
Sound pressure level (SPL)
Max: 92dBA
Transducer size (mm)
5x (48x80) racetrack drivers
4x (75) Passive Radiators
4x (75) Passive Radiators
Audio calibration
Yes - Automatic MultiBeam Calibration
Formats
Formats
Audio Formats
MPEG 1 Layer 2/3
MPEG 2 Layer 3
PCM
MPEG 2 Layer 3
PCM
Interfaces/Ports
Interfaces/Ports
USB port
Ethernet port
HDMI port
Yes - 2
Digital Audio In (Optical)
