EE Smart Hub 7 Pro

This device lets you share a secure broadband internet connection using WiFi. You can connect most WiFi-enabled devices to it (e.g., PCs, mobile gaming devices, smartphones, and tablets).

	Your EE Smart Hub Pro device
	Power supply
	User guide
	Safety instructions
	ethernet cable

If you're replacing your Smart Hub Pro, the box might not include accessories. You can reuse the ones from your old hub.

If accessories are provided, please use them to replace your old ones to ensure full compatibility with your new Hub.

Description of each port follows listed from left to right when looking at the back of the Hub).

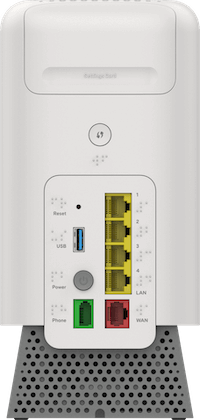

Connectors, ports and buttons on the rear of the Smart Hub 7 Pro

Centre of back panel

	Wireless (WPS) button – connecting devices wirelessly
Lower left-hand side, top to bottom
	Reset button: reset to factory default settings
	USB port for charging devices
	Power button – to turn on/off
	Phone port – connects a landline phone to Digital Home Phone service
Lower right-hand side top to bottom
	Ethernet (4 ports) – connects to your devices
	WAN – connect to Openreach modem
Other
	WiFi Settings Card - pull-out the card to find your Hub’s default WiFi name and password on the reverse

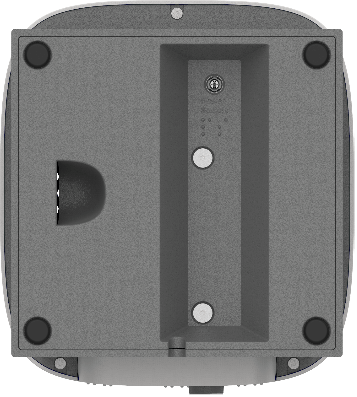

	Power connector

The WiFi Settings and Hub Manager Admin password are printed on the settings card that comes with your hub.

 If the card is hard to read, you can still access the information using your smartphone:

If you used the EE App to set up your hub:

• you were prompted to scan the settings card on the back of the hub
• you can now find your WiFi details in your phone’s WiFi settings

If you didn’t use the EE App or need the Admin password:

• remove the settings card from the back of the hub
• open a QR code scanner app (not just your phone’s camera)
• scan the QR code on the inside of the card

Your scanner app will display something like:

WIFI:S:<WiFi Name>;T:WPA;P:<WiFi Password>;<Admin Password>

The admin password is only needed if you want to use the online Hub Manager.

Light status and error states

Error states are displayed through the light on the front of the Hub - see this page What the lights on your Smart Hub Pro mean. These can also be seen in the EE app, or in the Hub Manager:

1. open a web browser on a device in your home that’s connected to the Hub (either WiFi or ethernet)
2. go to http://192.168.1.254 to open Hub Manager
3. Connection Status will detail the status of your Broadband connection

The UK Government has a legal requirement to minimise the unsorted waste disposal of electrical and electronic equipment and to maximise its separate collection and environmentally sound management.  The symbol shown here and, on a product, means you shouldn’t throw it in your normal rubbish at the end of its working life.

This product may contain substances that could be harmful to people or the environment if it’s not recycled correctly.

The equipment provided to you will remain the property of EE at all times (excluding outright sale equipment). You’ll need to return it back to us within 60 days of telling us you want to cancel, or we may need to charge you for it. You can do this by following the steps here: ee.co.uk/returns

As the environment is important to EE, we can get rid of it in an environmentally friendly way.

If this equipment is a replacement for something similar, then you can also dispose of your old kit by following the instructions at ee.co.uk/returns.

Important safety and care instructions

Your Smart Hub from EE is manufactured to comply with European safety standards. Please read the following instructions carefully before installing and using it.

Keep these instructions safe for future reference.

Installation and location

• For indoor use only in the UK.
• All devices and cables connected to this hub via the ethernet or WAN port shall be referenced to the same earth circuit as the hub and no part shall be positioned outdoors.
• Position all parts, including power adapters away from heat and sun (eg away from radiators, window sills or other electrical equipment that can get hot).
• Keep area ventilated (eg don’t put in cupboards or back of sofas) and don’t block any vents with objects or thick carpets.
• Keep device and cables out of young children’s reach.
• Only use power adapters provided by EE for this specific device; contact our helpdesk if you need a replacement.
• Electronic devices hate liquids; don’t place devices and power adapters in damp areas or near sources of water or splashes.
• This device uses wireless technology; check before using or installing where restrictions may apply such as in hospitals.
• Product may cause scratches or marks if placed on fragile surfaces (eg veneered wood or delicate fabrics); place on a mat if needed.
• Don’t use near flammable substances or in a flammable atmosphere (eg warehouse or garage) important safety and care instructions
• Designed for use at room temperatures between 0°C and 40°C.
• Keep device upright at all times. Not standing it as designed could cause overheating.

Care and maintenance

• Treat all parts with care; no shock or vibration, and don’t pull, twist any cables.
• Dust with a soft dry cloth; don’t use water or solvent.
• Regularly check that objects don’t cover any parts or any vents that could cause verheating.
• When not in use, store in a dry place and away from extreme heat or cold.

Warnings

• If your devices or power adapters appear damaged, stop using them immediately. Switch off your electrical socket if it’s safe to do so and contact our helpdesk.
• Don’t try to open your devices or power adapters. There are no serviceable parts and you risk an electrical shock.
• This device has been evaluated for and shown compliance with European Guidelines when installed and operated with a minimum distance of 20cm between the unit and your body.
• There is a slight chance your product could be damaged by an electrical storm. We recommend that you unplug the power and phone line cord during a storm.
• If you’ve got a pacemaker please check with your doctor before installation.
• Radio signals from this product may cause interference to hearing aids

Radio Equipment Directive Declaration of Conformity

EU

Hereby, EE declares that the radio equipment type SH40J is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at: ee.co.uk/declaration-of-conformity

UK

Hereby, EE declares that the radio equipment type SH40J is in compliance with Radio Equipment Regulations 2017 and The Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connected products) Regulations 2023. The full text of the EU declaration of conformity is available at: ee.co.uk/declaration-of-conformity

Restrictions

This radio equipment is subject to certain restrictions when it is placed on the market in Belgium (BE), Bulgaria (BG), Czech Republic (CZ), Denmark (DK), Germany (DE), Estonia (EE), Ireland (IE), Greece (EL), Spain (ES), France (FR), Croatia (HR), Italy (IT), Cyprus (CY), Latvia (LV), Lithuania (LT), Luxembourg (LU), Hungary (HU), Malta (MT), Netherlands (NL), Austria (AT), Poland (PL), Portugal (PT), Romania (RO), Slovenia (SI), Slovakia (SK), Finland (FI), Sweden (SE), Northern Ireland (UK(NI)), Norway (NO), Switzerland (CH), Iceland (IS), Turkey (TR), Lichtenstein (LI).

WiFi 5 GHz: The frequency band 5150-5350 MHz is limited to indoor use. This radio equipment is also subject to certain restrictions when it is placed on the market in United Kingdom (UK): In accordance with the relevant statutory requirements in the UK, the 5150 to 5350 MHz frequency range is restricted to indoor use in the United Kingdom.

Radio transmission information

Power Information

The devices Smart Hub SH40J comply with EN 62368-1. The rating label is located on the base of the device.

Further details can be found on EE's Declaration of Conformity page.

PSTI and Software Support

To find the support period for your device or to report security issues, go to: ee.co.uk/help/terms-and-conditions/general

The EE Smart Hub contains code that is covered by the GNU General Public License (GPL). In accordance with the GPL, EE has made the relevant code available for download at: https://ee.co.uk/help/ee-devices-user-guides/devices-gpl-code

Other support information

Technical specifications

WiFi standard - WiFi 7

Wireless capability - Tri band
2.4GHz 4x4
5GHz 4x4
6Hgz 4X4

Wired connections
4 x 2.5 Gbps LAN
1 x 2.5Gbps WAN

Supported broadband technology - Full Fibre

Multiple SSIDs
Yes, with select models/software
Main/Guest/Compatible

Contactless WiFi pairing - No

Parental Controls and Security - Advanced

Smart WiFi/extender support - Yes - EE Smart WiFi Pro

Smart Hybrid Connect support - Yes

Sustainability

Plastic-free packaging

Recycled casing

More accessibility information

EE's Here for You provides further information on Getting the most from your devices.
