EE TV Box Edge

What's in the box

	TV Box Edge
	Power supply
	Remote control
	User guide
	HDMI cable – connects your TV Box to your TV
	Ethernet cable – for connecting your TV Box to your Broadband Hub if it’s near your TV. Not used if connecting with WiFi

If you're replacing your TV Box Pro, the box might not include accessories. You can reuse the ones from your old device.

If accessories are provided, please use them to replace your old ones to ensure full compatibility.

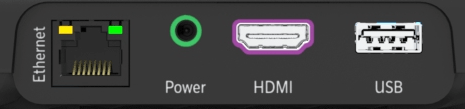

Rear panel: connectors and power

Connectors, ports and buttons on the rear of the TV Box Edge

Top left
	Power connector (green)
	Ethernet (yellow) – if not using Wi-Fi, connect to your Hub using the cable provided
	HDMI (purple) – connect to your TV using the cable provided
	USB – use for connecting some accessibility devices, for example, a keyboard

TV Box Edge button

On/Off button

EE products are designed to work best when set up using the EE app.

Whether you use the EE app or not, please follow the step-by-step instructions on this set up TV Box Edge page.

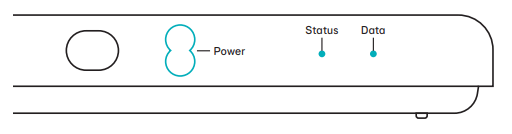

Lights on your TV Box Pro

Parental control and payment PINs

Take control over what your kids stumble across (and rent) by setting up a parental control PIN.

Parental control PIN

• To control access to programmes with an age rating.
• The default PIN is 1234.
• You can change it at any time in (Settings).

Payment PIN

To buy films or TV shows on the EE Player. You can have the same PIN for both if you like.

If you forget your payment PIN, call us on 0330 123 1105 or go to ee.co.uk/help to find out how to reset your TV box.

You may need to set up other PINs or passwords to access other players like Amazon or Netflix.

Recording on EE TV

You can record up to two programmes at once when your TV Box is in ‘Internet Mode’. (If your box is in ‘Aerial Mode’ you can record four programmes at once.) When your TV Box is full, it’ll automatically delete the oldest one you’ve watched. You can lock an old recording to prevent this from happening.

Find out more about Aerial and Internet modes for TV Box Pro.

Click the on top right button of the remote control and you’ll find a range of accessibility features to help you watch your EE TV service:

• audio description
• subtitles
• sign language

Not all broadcasters allow these features, but if they do you can turn them on/off in Settings.

Select Appearance and you can:

• switch on high contrast
• remove channel logos
• remove transparency

which may  make the menus and text easier to read.

You can also use the Zoom feature to make text bigger in the Guide or in Apps, which can be found in More, and switched on or off by selecting OK.

Or you can use a UK USB keyboard, either alongside the remote or instead of it, Just plug your keyboard into the back of your TV box and use the keys like you would on a remote control.

Find out more about sign language on your EE TV Box.

Find out more about using transparent backgrounds, subtitles and zoom on your EE TV Box.

The UK Government has a legal requirement to minimise the unsorted waste disposal of electrical and electronic equipment and to maximise its separate collection and environmentally sound management.  The symbol shown here and, on a product, means you shouldn’t throw it in your normal rubbish at the end of its working life.

This product may contain substances that could be harmful to people or the environment if it’s not recycled correctly.

The equipment provided to you will remain the property of EE at all times (excluding outright sale equipment). You’ll need to return it back to us within 60 days of telling us you want to cancel, or we may need to charge you for it. You can do this by following the steps here: ee.co.uk/returns

As the environment is important to EE, we can get rid of it in an environmentally friendly way.

If this equipment is a replacement for something similar, then you can also dispose of your old kit by following the instructions at ee.co.uk/returns.

Important safety and care instructions

Your TV box Pro (model RTIW387) from EE is manufactured to comply with European safety standards. Please read the following instructions carefully before installing and using it.

Installation and location

• For indoor use only in the UK.
• Position all parts, including power adapters away from heat and sun (e.g. away from radiators, window sill or other electrical equipment which can get hot).
• Keep area ventilated (e.g. don’t put in cupboards or back of sofas) and don’t block any vents with objects or thick carpets.
• Keep device flat on its feet at all times. Not standing it as designed could cause overheating.
• Keep device and cables out of young children’s reach.
• Only use power adapters provided by EE for this specific device. See ee.co.uk/help for further information or contact our helpdesk if you need a replacement.
• Electronic devices hate liquids; don’t place devices and power adapters in damp areas or near sources of water or splashes.
• This device uses wireless technology; check before using or installing where restrictions may apply such as in hospitals.
• The Ethernet port is intended to be connected to devices in the same building and on the same earth circuit.
• When connecting a USB peripheral device, respect the way of insertion and don’t use force.
• Product may cause scratches or marks if placed on fragile surfaces (e.g. veneered wood or delicate fabrics); place on a mat if required.
• Don’t use near flammable substances or in a flammable atmosphere (e.g. warehouse or garage).
• Designed for use at room temperatures between 0 and 40ºC.

Care and maintenance

• Treat all parts with care; no shock or vibration, and don’t pull or twist any cables.
• Regularly check your product for damage to ensure small parts aren’t exposed.
• Don’t move your set-top box or turn the power off suddenly while the hard disk drive is running.
• EE or BT won’t be liable for any corruption of data on the hard disk drive caused by carelessness or misuse.
• Unplug from the mains socket before cleaning. Dust with a soft dry cloth; no water or solvent.
• Regularly check that objects don’t cover any parts or any vents which could cause overheating.
• When not in use, store in a dry place and away from extreme heat or cold.

Warnings

• If any parts of your product, power adapters or any cables appear damaged or make unusual noises, discontinue use immediately. Switch off your electrical socket if it is safe to do so and contact our helpdesk.
• Don’t try to open your device or power adapters. There are no serviceable parts and you risk an electrical shock.
• This device has been evaluated for and shown to be compliant with European Guidelines when installed and operated with a minimum distance of 20cm between the unit and your body.
• If you’ve got a pacemaker please check with your doctor before installation.

Battery safety information

• Only use batteries of same size and type as originally supplied.
• Take care when disposing of your product. The battery could explode if placed in a fire, a hot oven or is crushed or cut.
• Don’t subject the product to extremely low air pressure as the battery may explode or leak flammable liquid or gas.

Radio Equipment Directive Declaration of Conformity

EU

Hereby, EE Ltd declares that the radio equipment type TV Box (Model DIW3930) is in compliance with Directive 2014/53/ EU. The full text of the EU declaration of conformity is available at: ee.co.uk/declaration-of-conformity.

UK

Hereby, EE Ltd declares that the radio equipment type TV Box (Model DIW3930) is in compliance with Radio Equipment Regulations 2017 and The Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023.

The full text of the UK declaration of conformity is available at: ee.co.uk/declaration-of-conformity.

Restrictions

This radio equipment is subject to certain restrictions when it is placed on the market in:

Belgium (BE), Bulgaria (BG), Czech Republic (CZ), Denmark (DK), Germany (DE), Estonia (EE), Ireland (IE), Greece (EL), Spain (ES), France (FR), Croatia (HR), Italy (IT), Cyprus (CY), Latvia (LV), Lithuania (LT), Luxembourg (LU), Hungary (HU), Malta (MT), Netherlands (NL), Austria (AT), Poland (PL), Portugal (PT), Romania (RO), Slovenia (SI), Slovakia (SK), Finland (FI), Sweden (SE), Northern Ireland (UK(NI)), Norway (NO), Switzerland (CH), Iceland (IS), Turkey (TR), Lichtenstein (LI).

Wi-Fi 5 GHz: The frequency band 5150-5350 MHz is limited to indoor use.

This radio equipment is also subject to certain restrictions when it is placed on the market in United Kingdom (UK).

In accordance with the relevant statutory requirements in the UK, the 5150 to 5350 MHz frequency range is restricted to indoor use in the United Kingdom.

Radio transmission information

TV Box Edge

Remote control

To turn off the TV Box Pro's WiFi,  plug in the ethernet cable provided between your box and your hub.

Power Information

Further details can be found on EE's Declaration of Conformity page.

PSTI and Software Support

To find the support period for your device or to report security issues, go to: ee.co.uk/help/terms-and-conditions/general

The TV Box (Model DIW3930) contains code that is covered by the GNU (General Public Licence - GPL). In accordance with the GPL, EE has made the relevant code available for download at: https://ee.co.uk/help/ee-devices-user-guides/devices-gpl-code

Other support information

Content delivery: IP (Broadband)

Local recording: No

Video support: 4k HDR

Audio support: Stereo, 5.1 Surround, Dolby Atmos

Ports: Power, ethernet, HDMI, USB 2.0

More accessibility information

EE's Here for You provides further information on Getting the most from your devices.

Trademarks

YouView

YouView is subject to terms of use, suitable broadband speed, TV aerial and coverage. See www.youview.com. Software contained in this device is licensed on a limited basis. All other rights are reserved. YouView and the YouView logo are trademarks of YouView TV Limited and are used under licence. © YouView TV Limited 2010–2022. All logos and content images are trademarks and/or copyright of their respective owners. Images are for illustration only and may differ on screen. Content is subject to availability.

Dolby

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

HDMI

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Bluetooth

Bluetooth® is a registered trademark of Bluetooth SIG, Inc.

DVB

DVB and the DVB logos are trademarks of the DVB Project.

HEVC ADVANCE

Covered by one or more claims of the patents listed at patentlist.hevcadvance.com

MPEG LA AVC

This product is licensed under the AVC patent portfolio license for the personal and non- commercial use of a consumer to : (i) encode video in compliance with the AVC standard (“AVC-video”) and/or (ii) decode AVC video that was encoded by a consumer engaged in a personal and non- commercial activity and/or was obtained from a video provider licensed to provide AVC-video.

No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, LLC see www.mpegla.com

Microsoft PlayReady

This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft.

Content owners use Microsoft PlayReadyTM content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady protected content and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device’s ability to consume PlayReady-protected content. Revocation should not affect unprotected content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.

Intertrust

Portions Copyright © 2004 – 2018, Intertrust Technologies Corporation and its licensors. All rights reserved.

Others

All other brands and logos are trademarks or registered trademarks of their respective owners.
